B50 Brewing System

The B50 is the workhorse of homebrewers. It offers simplicity out of the box, whilst keeping the level expansion possibilities.

Indirect heating and included whirlpool setup for maximum yield and fast cooling  through the integrated cooling jacket makes cleaning a breeze. The 8" touch display can easily be relocated on the system or externally based on your needs (longer cables are available).

Included whirlpool setup for maximum yield and fast cooling.

The flow of wort through the FCS Brew Pump is controlled via the patented CleanCore 3-Way valve operated from the front.

The combined temperature and level switch sensor keeps you safe by automatically switching off the pump and heating if the water level is low.

With TC side ports, you can easiliy expand the inputs and outputs of the tank with sparge water, external added cooling with bypass etc.

The B50 can also be expanded with a stackable external mash tun that allows for very high gravity brewing and higher efficiency compared to the integrated malt pipe.

If you need a powerful and flexible workhorse without the large volume, the B50 is the perfect match.

• Indirect heating (10 degree conical bottom)
• Integrated cooling jacket
• Included whirlpool setup
• Included hinged steam hat
• Powered by FCS Brewing with an 8" Touch Screen
• Patented CleanCore sanitary 3-way valves
• 2 side TC ports for expansion

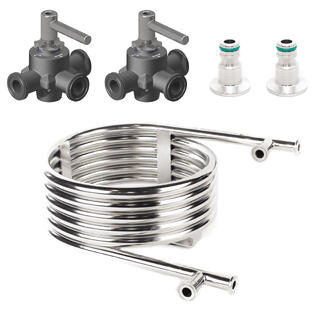

• Optional external mash tun and counterflow chiller
• Included temperature sensor for malt pipe

Remember to get power cables for your area (purchased separately)

We recommend getting the cooling connector kit with quick connectors, but you can also order TC34mm fittings to connect the cooling jacket yourself. See our fittings page for all the options.

Click on the product page for all details and specs.

Drawings / Schematic for setup
