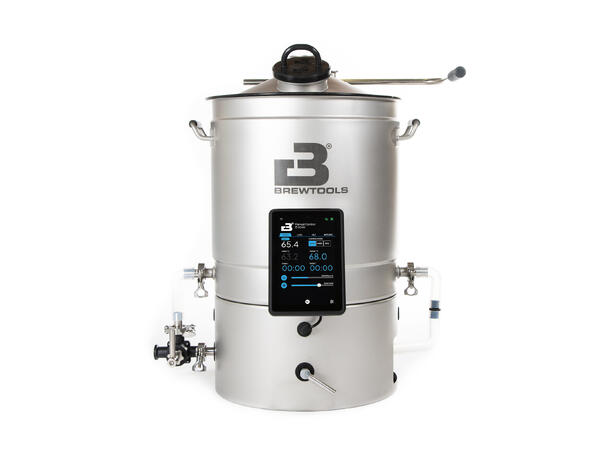

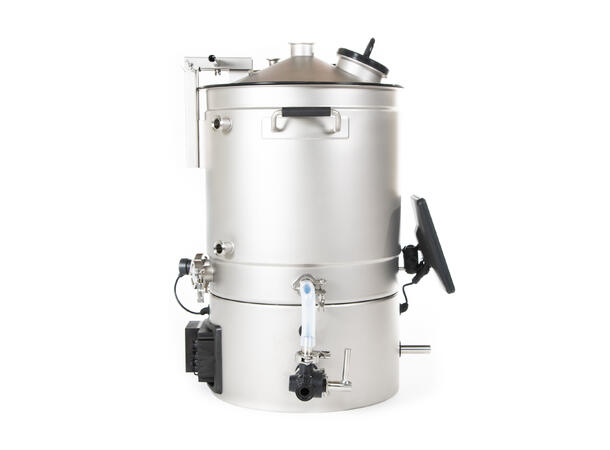

B50 Brewing System
The B50 is the workhorse of homebrewers. It offers simplicity out of the box, whilst keeping the level expansion possibilities.

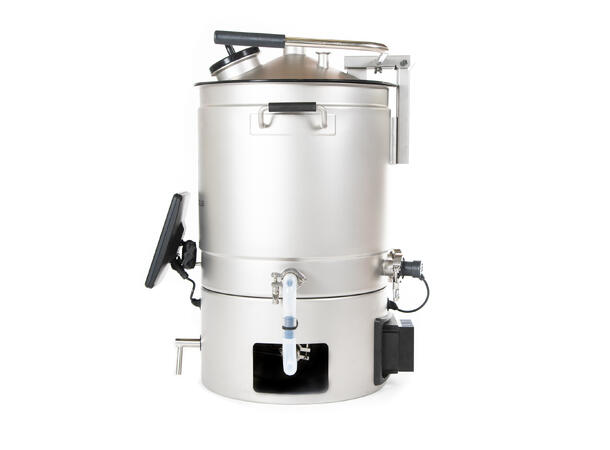

Indirect heating and included whirlpool setup for maximum yield and fast cooling through the integrated cooling jacket makes cleaning a breeze. The 8" touch display can easily be relocated on the system or externally based on your needs (longer cables are available).
Included whirlpool setup for maximum yield and fast cooling.
The flow of wort through the FCS Brew Pump is controlled via the patented CleanCore 3-Way valve operated from the front.
The combined temperature and level switch sensor keeps you safe by automatically switching off the pump and heating if the water level is low.
With TC side ports, you can easiliy expand the inputs and outputs of the tank with sparge water, external added cooling with bypass etc.

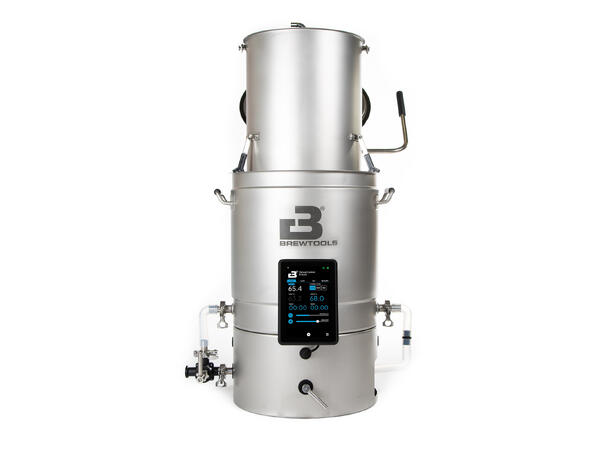

The B50 can also be expanded with a stackable external mash tun that allows for very high gravity brewing and higher efficiency compared to the integrated malt pipe.
If you need a powerful and flexible workhorse without the large volume, the B50 is the perfect match.

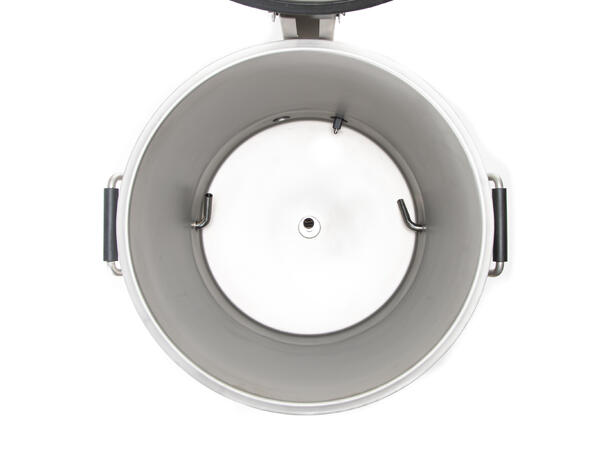

- Indirect heating (10 degree conical bottom)
- Integrated cooling jacket
- Included whirlpool setup

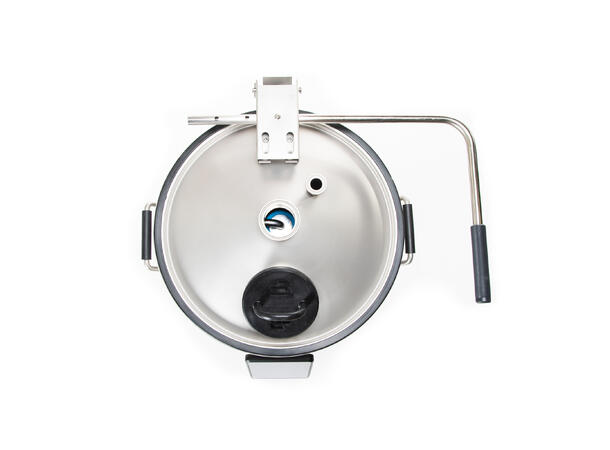

- Included hinged steam hat
- Powered by FCS Brewing with an 8" Touch Screen
- Patented CleanCore sanitary 3-way valves
- 2 side TC ports for expansion
- Optional external mash tun and counterflow chiller
- Included temperature sensor for malt pipe
Remember to get power cables for your area (purchased separately)

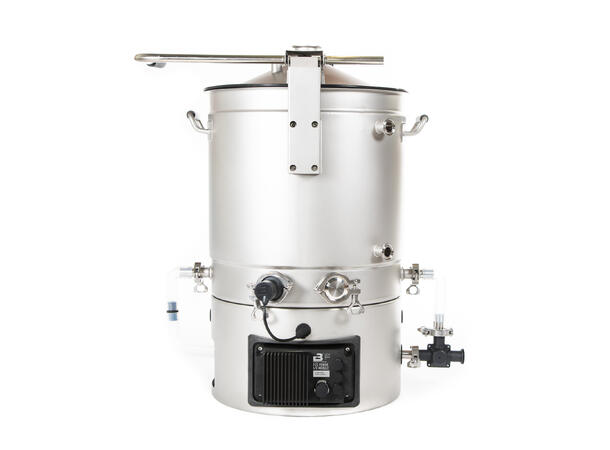

Available controller ports:
- 1 CAN bus ports (+24V)
- 1 external high level switch (for stackable mash tun)
- 1 mash temp sensor input
In the box:

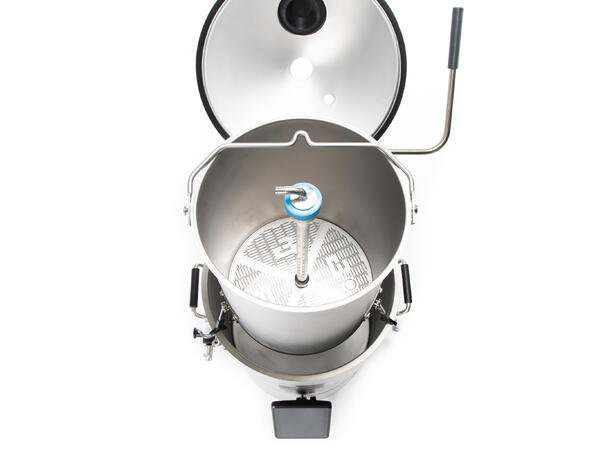

- B50 brewing system with malt pipe and steam hat

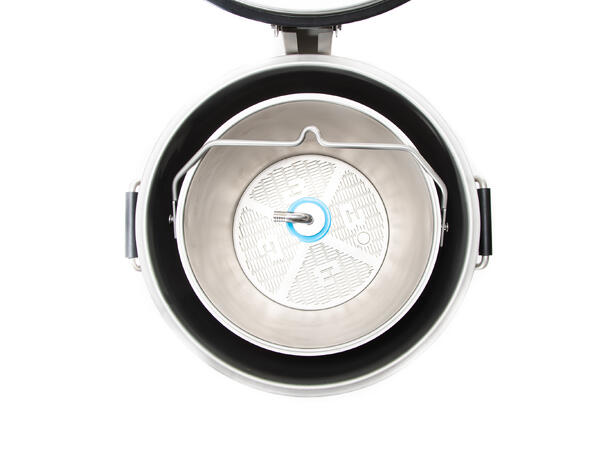

- Laser cut filter
- 1 CleanCore 3-way valve
- Silicone tubing for draining and recirculation
- Parts and accessories for assembly
- Mash sensor (probe with 2m cable)
Specifications:
Batch size: 10-40 liters
Total volume capacity: 52 liters
Grain capacity: 10 kg (<7.5 kg recommended)
Heating power: 3300W (230V)
Watt density: 3.73W/cm2
Control system: FCS Brewing with 8" IPS touch screen
Connectivity: Wi-Fi 2.4 GHz 802.11ax/b/g/n
Pump: Brewtools FCS Brew Pump, 30 l/min, 4.5m head
Materials: 304 Stainless steel, food grade silicone, EPDM, POK (Polyketone)
Valves, fittings, and connections: TC34mm
System height with steam hat: 732mm
Tank dimensions : Ø400mm, height 420mm (52.78 liters)
Malt pipe dimensions: Ø315mm, height 385mm (30.00 liters)
Packing dimensions and weight: 560 x 560 x 800 mm, XX kg (TBD)
Safety features: Overheat protection, dry-boil protection, liquid detection
Warranty: 5 years
Remember:
- Power cable(s)
- Connectors for cooling jacket (kit or custom setup)
- Troll table with crane
- Steam condenser
Models in pictures are prototypes. Changes/improvements may occur.
