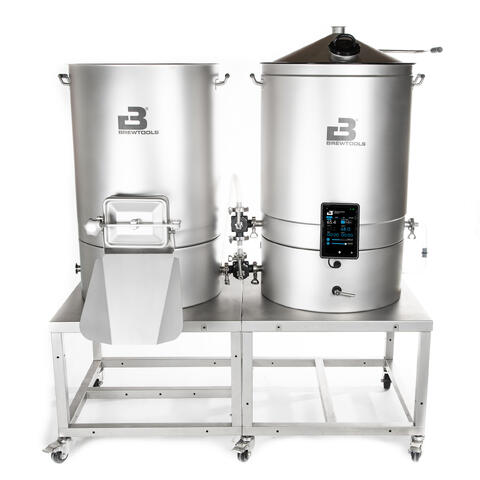

B100 & B180 Brewing Systems
The B100/B180 are powerful all in one brewing systems for serious homebrewer or small breweries. They offer simplicity out of the box, whilst keeping the level expansion possibilities.
Indirect heating and included whirlpool setup for maximum yield and fast cooling through the integrated cooling jacket makes cleaning a breeze. The 8" touch display can easily be relocated on the system or externally based on your needs (longer cables are available).
Included whirlpool setup for maximum yield and fast cooling.
The included malt pipe has a hing system to allow tilting the malt pipe to empty spent grains easily.
The flow of wort through the FCS Brew Pump is controlled via the patented CleanCore 3-Way valve operated from the front.
The combined temperature and level switch sensor keeps you safe by automatically switching off the pump and heating if the water level is low.
With TC side ports, you can easiliy expand the inputs and outputs of the tank with sparge water, external added cooling with bypass etc.
If you need a powerful and flexible workhorse for high volume homebrewing or a pilot brewery, the B100 or B180 is the perfect match.
- Indirect heating (10 degree conical bottom)
- Integrated cooling jacket
- Included whirlpool setup
- Included hinged steam hat
- Tiltable malt pipe
- Powered by FCS Brewing with an 8" Touch Screen
- Patented CleanCore sanitary 3-way valves
- 2 side TC ports for expansion

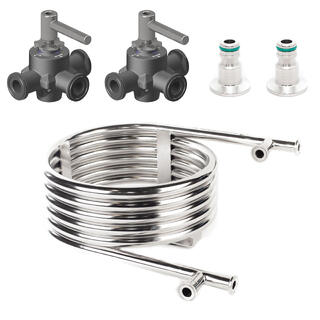

- Optional external mash tun and counterflow chiller
- Included temperature sensor for malt pipe
The systems come in different power configurations, so please select the system and power cables based on your available outlets and voltage.
Remember to get power cables for your area (purchased separately)
Click on the product page for all details and specs.
Drawings / Schematic for setup
