Mash tun for B100

The external mash tun for B100 increases the malt capacity and removes the need for a crane to lift the malt pipe.

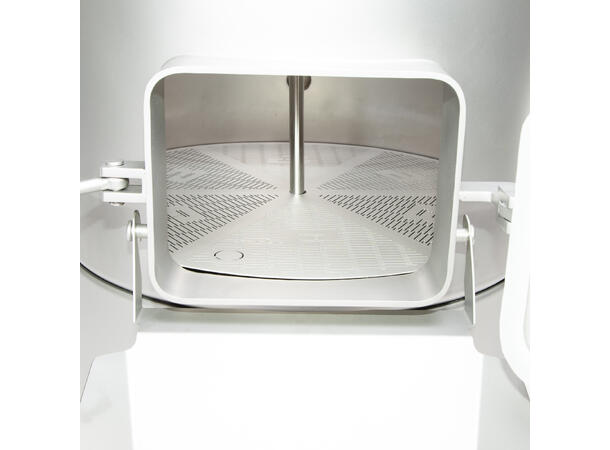

The tank comes with a grain door and chute for easy emptying of spent grains.

Integrated FCS Brew Pump which connects to your B100. The pump is automatically controlled by an integrated top level sensor.

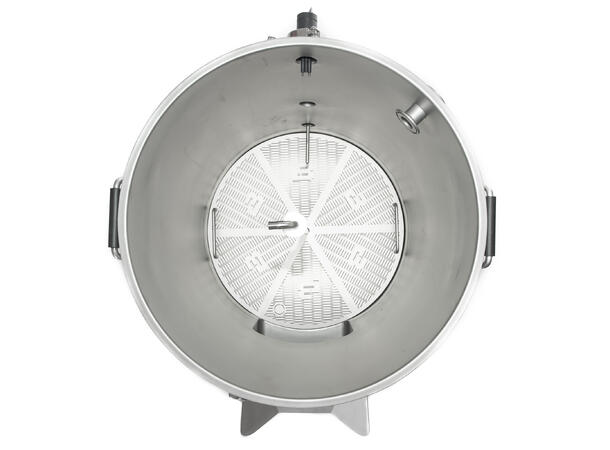

The mash tun has the same bottom CleanCore 3-way valve as the B100 and wort is circulated over the grains through the center pipe.

In the box:
- B100 Mash Tun with lid and malt chute
- Center pipe for B100 mash tun
- Laser Cut Filter for B100 mash tun
- FCS Brew Pump TC 1.5"
- CleanCore 3-way valve, TC1.5"mm
- Level Switch Sensor, TC 1.5"
- Thermowell
- Elbow, Gaskets, Tri Clamps and accessories.

Specifications:
- Total volume: 110 liters
- Grain capacity: 37kg (<28 kg recommended)
- Materials: 304 Stainless steel, food grade silicone, EPDM, POK (Polyketone)
- Full height: 835mm
- Tank dimensions : Ø500mm, height 465mm over filter (111 liters)

Models in pictures are prototypes. Changes/improvements may occur.
