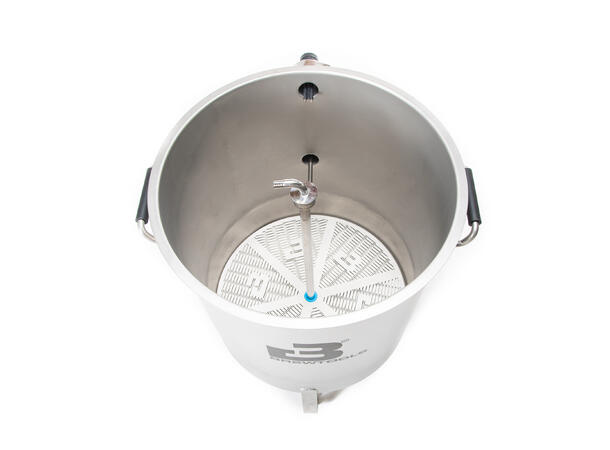

Stackable Mash Tun for B50
With the external mash tun the malt capacity increases for your B50 brewing system
Wort is sent up to the mash tun with the center pipe connection and ciruclates over the grain in the mash tun. The flow down to the B50 tank is adjusted with the included CleanCore Pinch valve.
The mash tun has an integrated top-level sensor to automatically stop the pump if the tank is full.
In the box:
- B50 Mash Tun with lid
- Center pipe for B50 mash tun
- Laser Cut Filter for B50 mash tun
- CleanCore Pinch Valve, TC34mm
- Level Switch Sensor, TC 1.5"
- Thermowell
- Elbow, Gaskets, Tri Clamps and accessories.
Specifications:
- Total volume: 52 liters
- Grain capacity: 17kg (<13 kg recommended)
- Materials: 304 Stainless steel, food grade silicone, EPDM, POK (Polyketone)
- Full height: 600mm
- Tank dimensions : Ø400mm, height 420mm (52.78 liters)

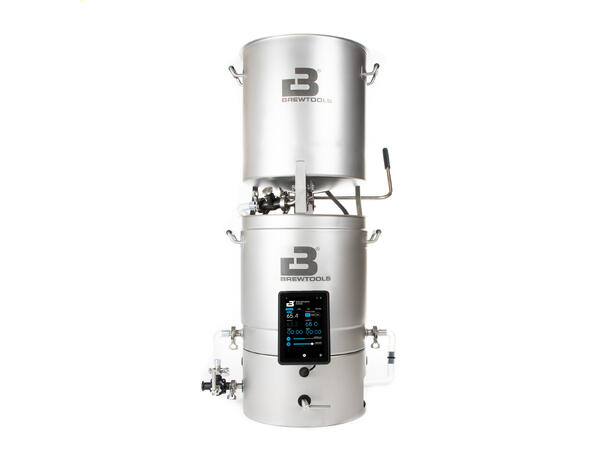

Picture on top of a B50 (not included). Models in pictures are prototypes. Changes/improvements may occur.
