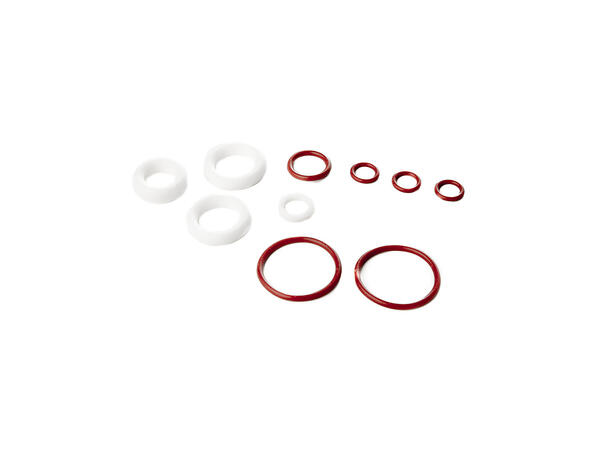

A rebuild kit with O-rings and PTFE parts to replace the wearing parts of your 3-way valves.
QTY | Description | Material | ID [mm] | OD [mm] | Thickness [mm] |
1 | Bushing for valve stem | PTFE | 10.3 | 14.5 | 4 |
3 | O-ring for valve stem | Silicone | 8.2 | 12 | 1.9 |
2 | Ball seat bushing | PTFE | 17 | 25 | 5 |
2 | O-ring for port | Silicone | 30.2 | 35 | 2.4 |
1 | Ball seat bushing | PTFE | 13 | 21.5 | 6.5 |
1 | O-ring for port | Silicone | 20.2 | 25 | 2.4 |
