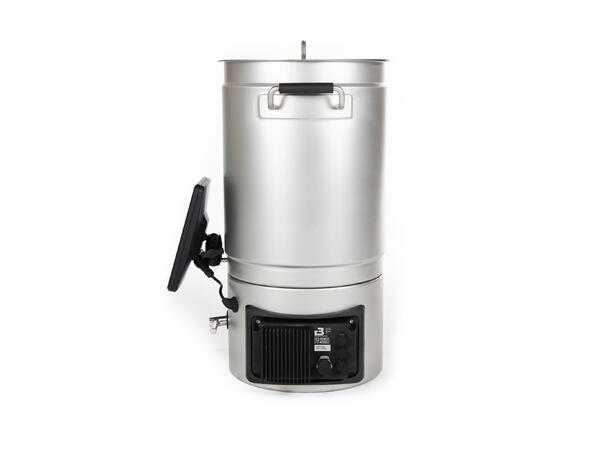

The B25 is designed to be the ultimate brewing system for kitchens, apartments, and other space-conscious environments. It combines exceptional simplicity and ease of use with the same powerful technology found in its larger siblings.
Indirect heating and the integrated cooling jacket make cleaning quick and effortless, while the 8" touchscreen can be mounted directly on the system or remotely to suit your workspace (optional longer cables available).
Wort flow through the FCS Brew Pump is precisely controlled via the patented CleanCore sanitary 3-way valve, conveniently operated from the front of the system. An integrated temperature and liquid level sensor continuously monitors the system and automatically disables both the pump and heating elements if the liquid level becomes too low, ensuring safe operation.
All in all, the B25 is built to be insanely durable and easy to use.
- Indirect heating (flat bottom)
- Integrated cooling jacket
- Powered by FCS Brewing with an 8" Touch Screen
- Patented CleanCore sanitary 3-way valve
Remember to get power cables for your area (purchased separately)
Available controller ports:
- 1 CAN bus ports (+24V)
- 1 external high level switch (not used on the B25 as of now)
- 1 mash temp sensor input (sold separately)
In the box:
- B25 brewing system with malt pipe and lid

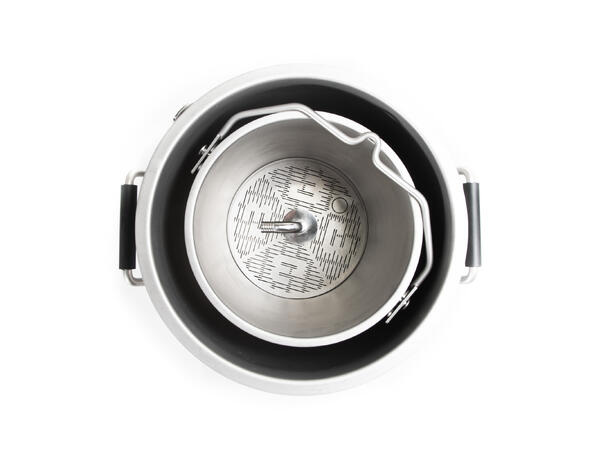

- Laser cut filter
- Malt pipe draining holder
- Silicone tubing for draining and recirculation
- Parts and accessories for assembly
Specifications:
Batch size: 5-20 liters
Total volume capacity: 28 liters
Grain capacity: 4.5 kg (<3.5 kg recommended)
Heating power: 2000W (230V) | 1500W (120V)
Watt density: 4.18W/cm2 | 3.14W/cm2
Control system: FCS Brewing with 8" IPS touch screen
Connectivity: Wi-Fi 2.4 GHz 802.11ax/b/g/n
Pump: Brewtools FCS Brew Pump, 30 l/min, 4.5m head
Materials: 304 Stainless steel, food grade silicone, EPDM, POK (Polyketone)
Valves, fittings, and connections: TC34mm
System height: 635mm
Tank dimensions : Ø300mm, height 400mm (28.27 liters)
Malt pipe dimensions: Ø225mm, height 345mm (13.72 liters)
Packing dimmensions and weight: 440 x 440 x 700 mm / XX kg (TBD)
Safety features: Overheat protection, dry-boil protection, liquid detection
Warranty: 5 years
Remember:
- Power cable(s)
- Connectors for cooling jacket (kit or custom setup)
- Tubing for cooling setup
Models in pictures are prototypes. Changes/improvements may occur.
