Density sensor with integrated temperature sensor for FCS.

Tuning fork based measurements gives accurate and real-time density and temperature data for your fermentation tank. Our density sensor measures density by inducing a vibration frequency in the fork and listening for the resontant frequency.

Take your fermentation to the next level with data-driven control and logging. Future updates of FCS will enable you to control temperature and pressure steps based on density in the tank, without the need for manual intervention.

This model is primarily designed for fermentation tanks without insulation, like our F40-F300 and similar tanks. Accuracy may vary for smaller tanks (like MiniUni+).

More information: https://docs.brewtools.com/density-sensor

Specifications:

Density accuracy: +-0.002 SG
Temperature accuracy: +- 0.3ºC
Flange: TC 1.5". Ø25mm minimum
Length: 200mm from flange

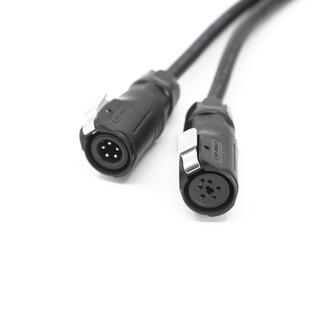

Connector: LP12 5-pin (CAN bus + 24V)

Note: Accuracy and function can vary based on trub, yeast health, yeast flocculation, rapid temperature changes, dry-hopping and other additions and distance to tank wall/heating elements etc. Pressure fermentation can increase accuracy. Accuracy and features will improve over time with software updates.
